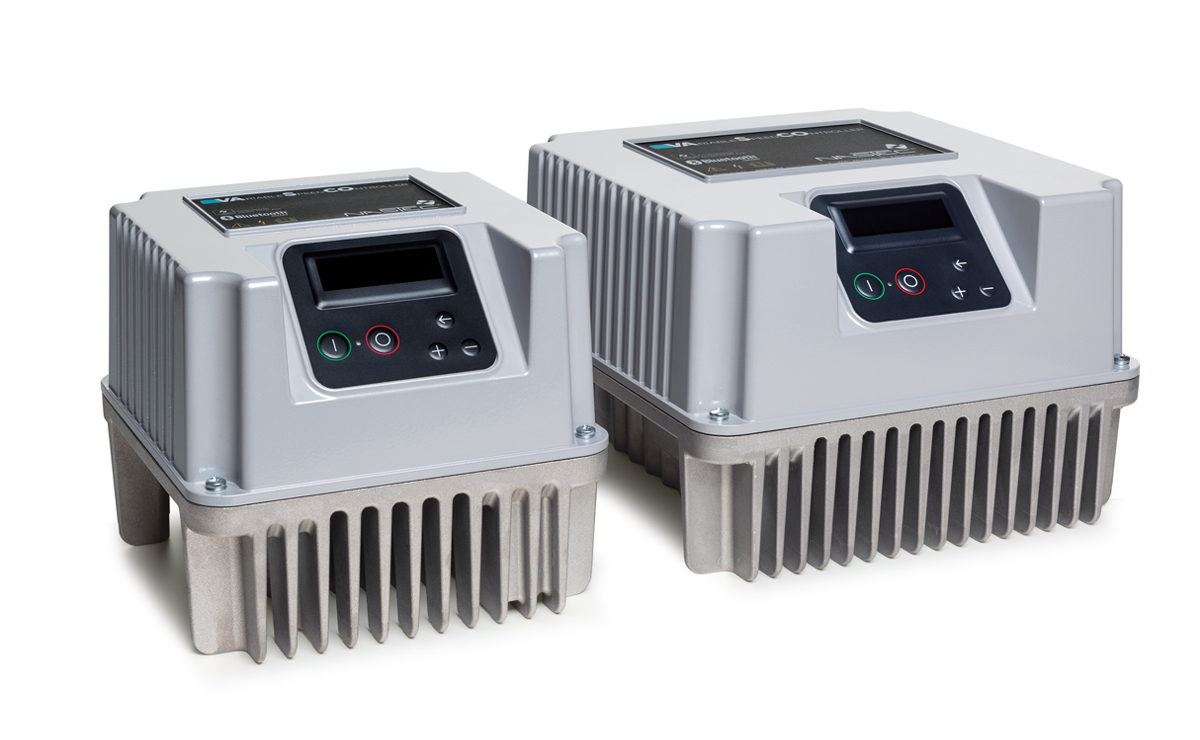

Installing VASCO – VAriable Speed COntroller is simple and intuitive, requiring just a few quick steps
- Connect device to the power supply.
- Connect device to the pump.
- Connect device to the sensor, located wherever in the piping you want to maintain the desired constant physical dimension (pressure, flow, liquid temperature, etc.)
- Set device to configure the pump to the system and the desired performance.
When first powering the device, a quick initial wizard is required for complete configuration of the drive. Additional parameters can be configured later by entering three different setting levels:
- End user level. The only level which can be accessed without a password. It allows the user to monitor electrical and hydraulic parameters and the status of device and pump.
- Installer level. In this level the installer can configure pump system to the characteristics of the hydraulic system. A password is required.
- Advanced level. This level allows the electrical configuration of device according to the pump. Another password is required.

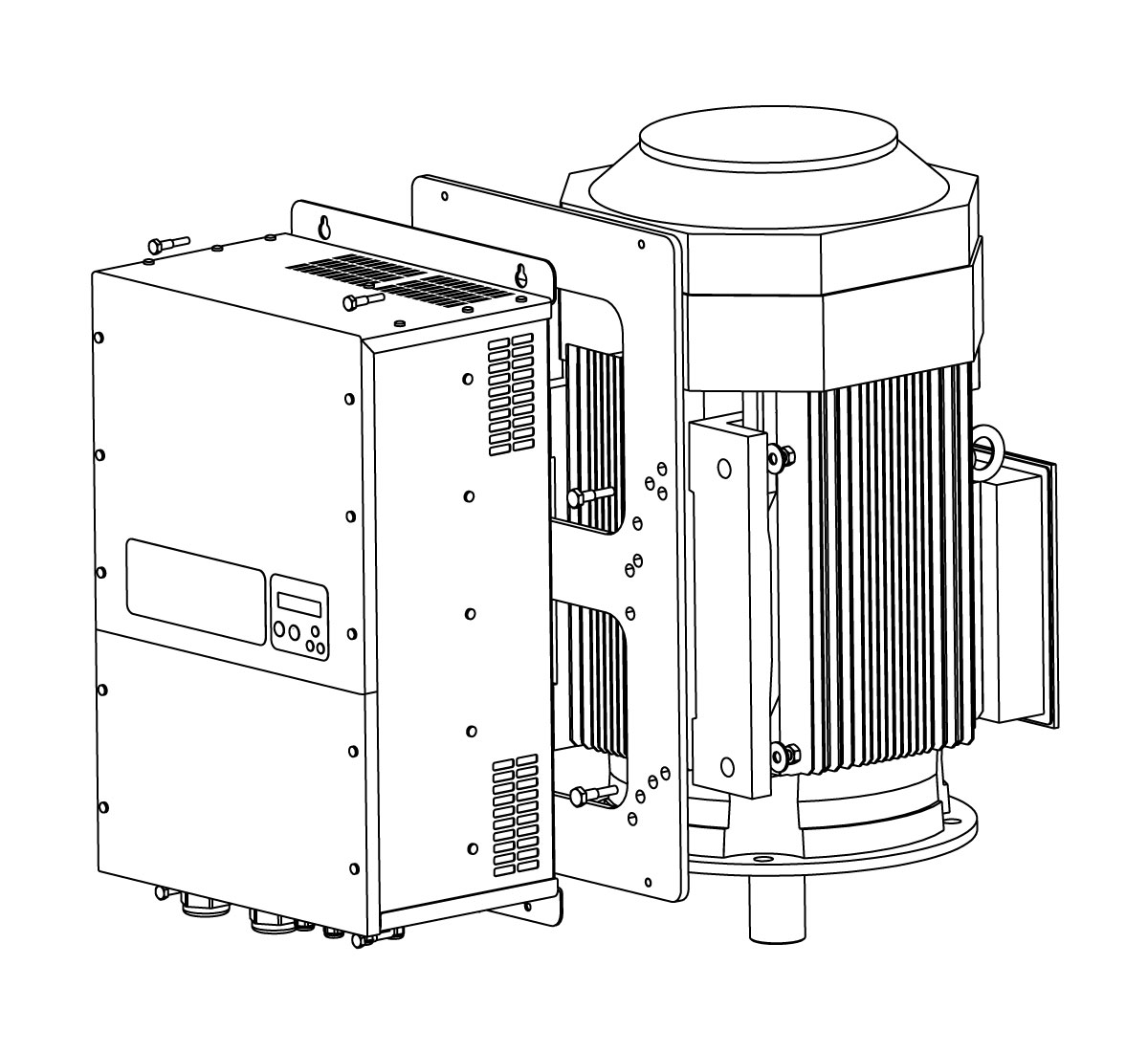

The device can be installed directly on the motor with a supplied installation kit.

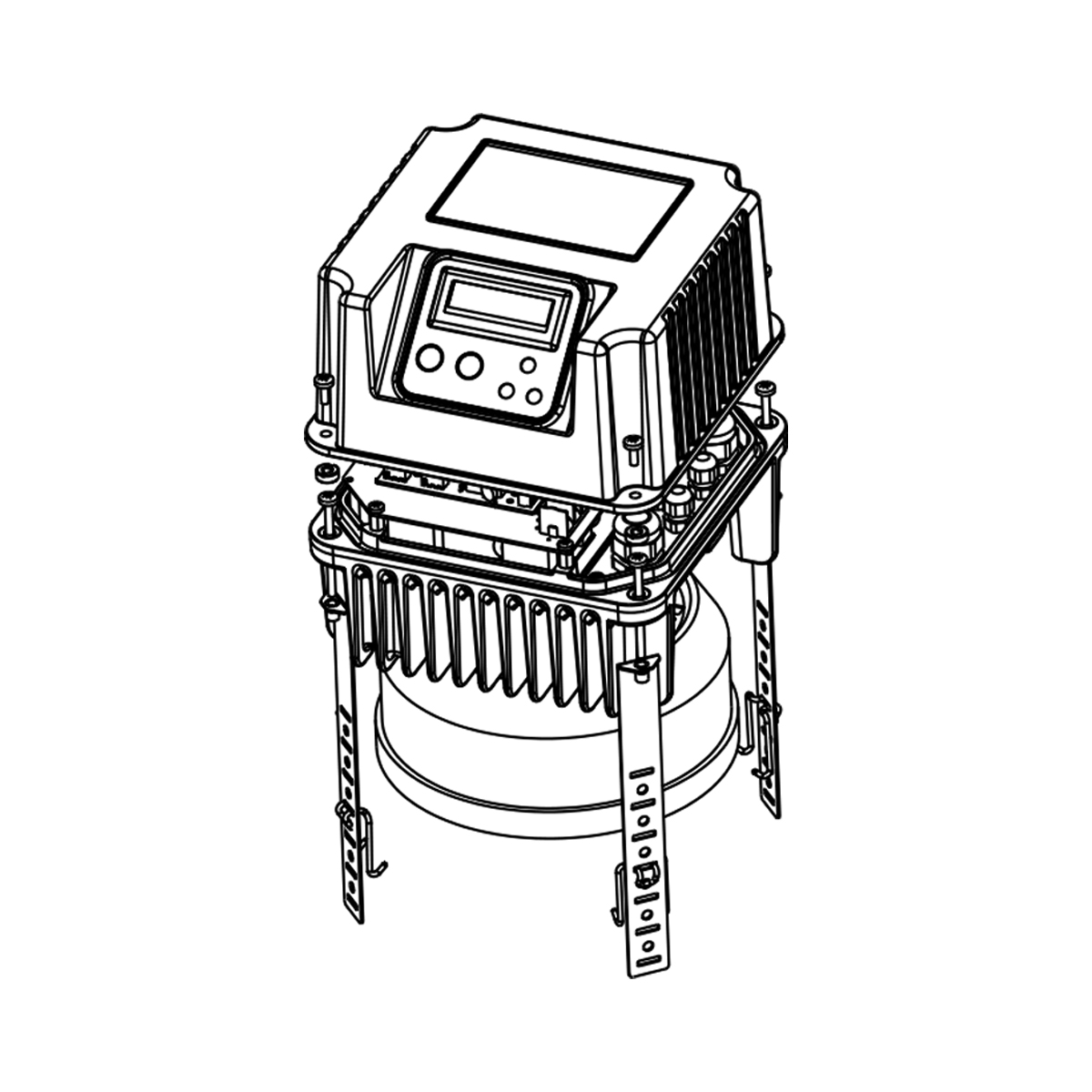

Motor kit
It is cooled by the motor cooling fan. Motor kit consists of 4 special clamps (or flange adapter) to secure the device to the motor fan cover (or motor feet).

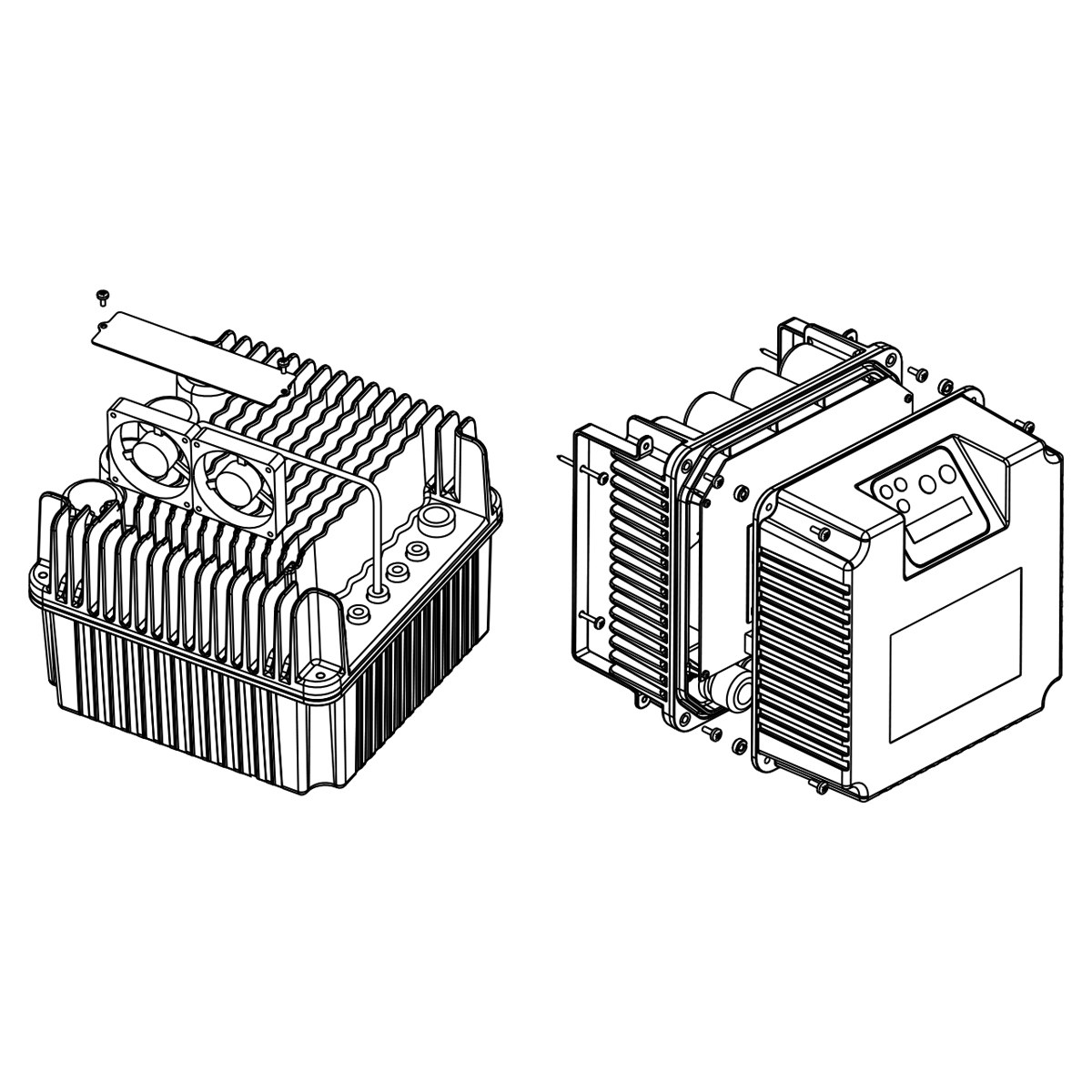

The device can be installed directly to the wall with a supplied installation kit.
Wall kit
It is cooled by an external cooling fan attached to the inverter radiator. A special metal bracket is supplied for device to be mounted on the wall.
