SUMMAG 4 – Technical specifications
Performances
| SUMMAG 4 100 Hz, 3000 rpm | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model SUMMAG 4 |
Voltage VAC |
Power P2 kW |
Electric current A |
η % |
||||||||||||
| 011.200.100 | 3 x 200 |
|
|
|
||||||||||||
| 011.360.100 | 3 x 360 |
|
|
|
||||||||||||
| 022.200.100 | 3 x 200 |
|
|
|
||||||||||||
| 022.360.100 | 3 x 360 |
|
|
|
||||||||||||
| 040.200.100 | 3 x 200 |
|
|
|
||||||||||||
| 040.360.100 | 3 x 360 |
|
|
|
||||||||||||
| 075.360.100 | 3 x 360 |
|
|
|
| SUMMAG 4 120 Hz, 3600 rpm | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model SUMMAG 4 |
Voltage VAC |
Power P2 (con S.F.) kW |
Electric current (con S.F.) A |
η % |
|||||||||
| 011.200.120 | 3 x 200 |
|
|
|
|||||||||
| 011.360.120 | 3 x 360 |
|
|
|
|||||||||
| 022.200.120 | 3 x 200 |
|
|
|
|||||||||
| 022.360.120 | 3 x 360 |
|
|
|
|||||||||
| 037.200.120 | 3 x 200 |
|
|
|
|||||||||
| 037.360.120 | 3 x 360 |
|
|
|
|||||||||
| 075.360.120 | 3 x 360 |
|
|
|
General specifications
| SUMMAG 4 | |
|---|---|
| Max liquid temperature | 35 °C (92 °F) |
| Min liquid cooling speed | 0.2 m/s (0,66 ft/s) |
| Characteristics of the pumped liquid | clean, chemically not aggressive, not explosive, without solid and fibre content, with max 50 g/m3 sand content |
| Cable | Flat cable ACS – WRAS – KTM approved |
| Engine coolant | 70% water + 30% glycol |
| Protection degree | IP68 |
| Maximum immersion depth | 150 m (492 ft) |
| Axial Thrust | 5000 N |
| Insulation class of windings | F |
| Certifications | |
| CE |

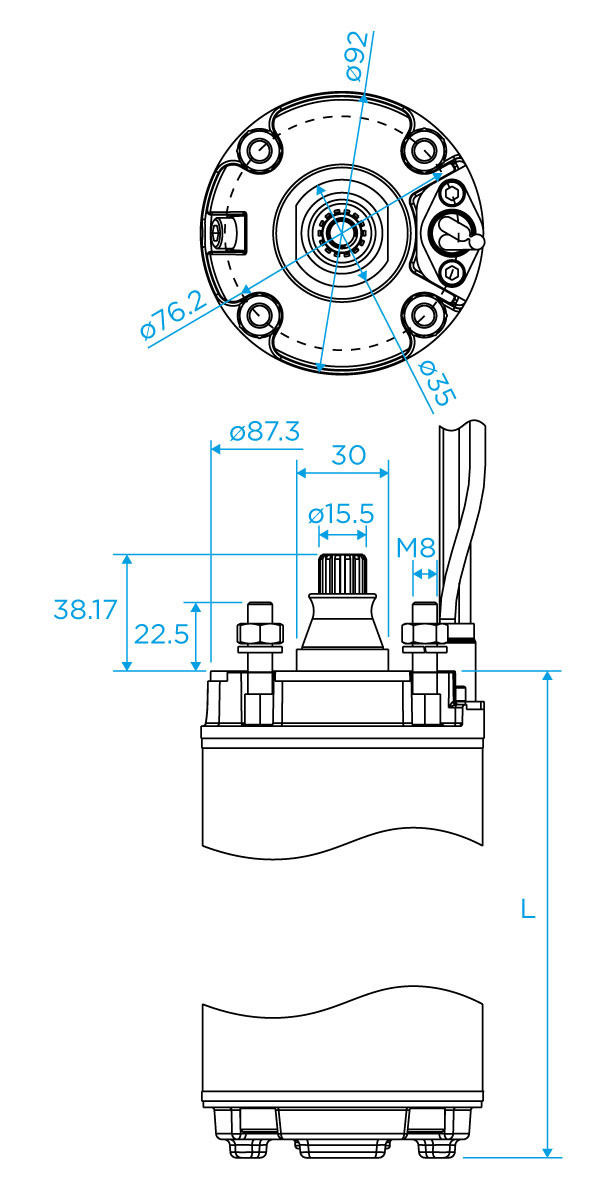

Weight and dimensions
| SUMMAG 100 Hz, 3600 rpm | ||
|---|---|---|
| P2 Power | L (mm) | Weight (kg) |
| 1,1 | 230 | 6,7 |
| 2,2 | 280 | 8,9 |
| 4,0 | 330 | 11,1 |
| 7,5 | 480 | 17,7 |

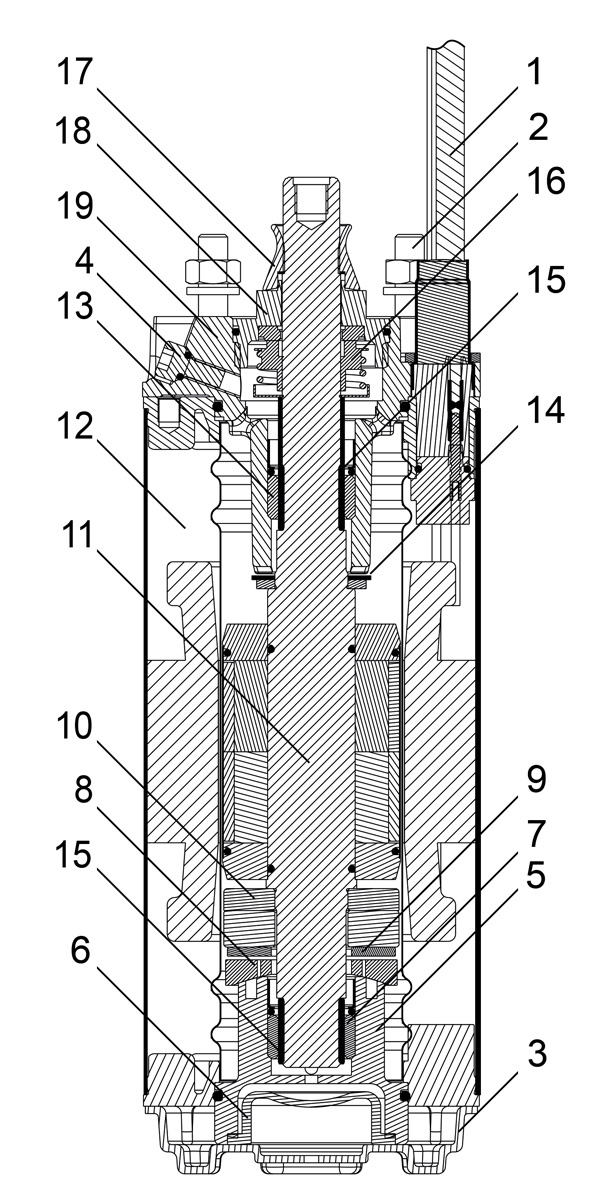

Materials
| RIF | Description | Material |
|---|---|---|
| 1 | Power supply cable with removable connector for drinking water applications | AISI 304 + ACS-KTM-WRAS compliant |
| 2 | M8 stud | AISI 304 |
| 3 | Lower support | AISI 304 |
| 4 | Screw for filling | AISI 304 |
| 5 | Thrust support | AISI 304 |
| 6 | Compensation bellows | EPDM |
| 7 | Lower bush | SiC |
| 8 | Tilting disc | AISI 304 |
| 9 | Pads | AISI420j |
| 10 | Rack | CTI25 |
| 11 | Motor shaft | AISI 431 |
| 12 | Canned type stator | AISI 304 |
| 13 | Upper bush | SiC |
| 14 | Upper thrust bearing | Teflon |
| 15 | Ceramized sleeve | AISI 304 + Ceramic |
| 16 | Mechanical seal | SiC |
| 17 | Rotating sandguard | NBR |
| 18 | Mechanical seal support | AISI 304 |
| 19 | Upper support | AISI 304 |
Designation
SUMMAG 4
AAA.BBB.CCC.DD
AAA: Rated power x 10 [kW]
BBB: Rated voltage [VAC]
CCC: Rated Frequency [Hz]
DD: Alphanumeric code for optional construction features (00: standard execution).
Example: SUMMAG 4 011.200.100.00
