4HS MultiPower – Technical specifications

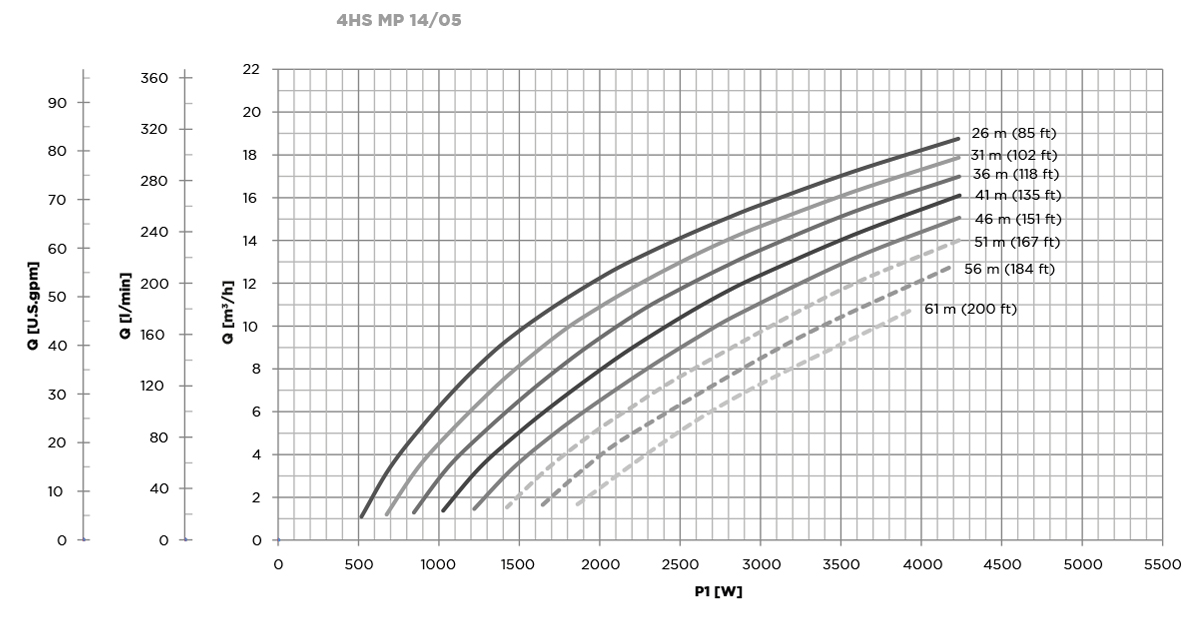

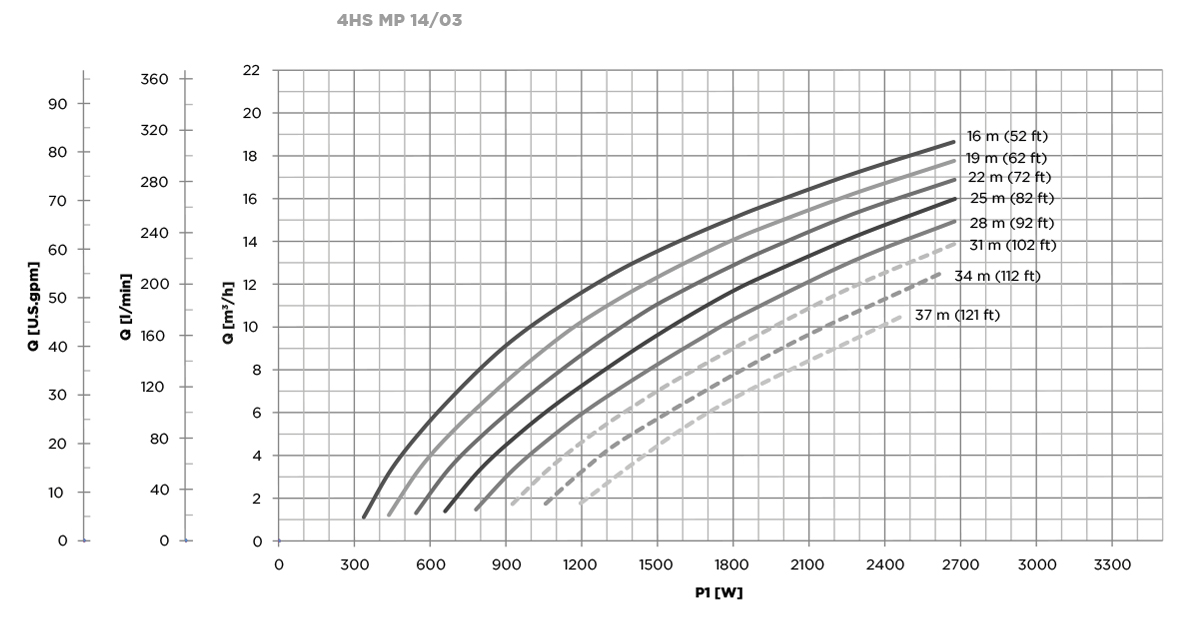

Performance
| 4HS 01/03H MP | |
| Voltage | 90-400 VDC 90-265 VAC |
| Max current | 13 A (100 VDC) 13 A (100 VAC) |
| Power factor | 1 |
| Max power P1 | 1300 W |
| Length | 1385 mm |
| Discharge | 1 1/4” |
| Pump weight | 21 kg |
| Max diameter* | 99 mm |
| Packing dimensions | 120 x 20 x 29 cm |
| Total weight | 22 Kg |
* Max. external diameter including cable and cable cover
| 4HS 02/02H MP | |
| Voltage | 90-400 VDC 90-265 VAC |
| Max current | 13 A (100 VDC) 13 A (100 VAC) |
| Power factor | 1 |
| Max power P1 | 1300 W |
| Length | 1350 mm |
| Discharge | 1 1/4 “ |
| Pump weight | 19,5 Kg |
| Max diameter* | 99 mm |
| Packing dimensions | 120 x 20 x 29 cm |
| Total weight | 20,5 Kg |
* Max. external diameter including cable and cable cover
| 4HS 02/02H R MP | |
| Voltage | 90-400 VDC 90-265 VAC |
| Max current | 16 A (125 VDC) 16 A (125 VAC) |
| Power factor | 1 |
| Max power P1 | 2000 W |
| Length | 1400 mm |
| Discharge | 1 1/4 “ |
| Pump weight | 20,5 Kg |
| Max diameter* | 99 mm |
| Packing dimensions | 120 x 20 x 29 cm |
| Total weight | 21,5 Kg |
* Max. external diameter including cable and cable cover
| 4HS 05/04 MP | |
| Voltage | 90-400 VDC 90-265 VAC |
| Max current | 16 A (100 VDC) 16 A (100 VAC) |
| Power factor | 1 |
| Max power P1 | 1600 W |
| Length | 879 mm |
| Discharge | 1 1/2 “ |
| Pump weight | 19,5 Kg |
| Max diameter* | 99 mm |
| Packing dimensions | 120 x 20 x 29 cm |
| Total weight | 20,5 Kg |
* Max. external diameter including cable and cable cover
| 4HS 05/08 MP | |
| Voltage | 90-400 VDC 90-265 VAC |
| Max current | 16 A (187 VDC) 16 A (187 VAC) |
| Power factor | 1 |
| Max power P1 | 3000 W |
| Length | 1013 mm |
| Discharge | 1 1/2 “ |
| Pump weight | 22 Kg |
| Max diameter* | 99 mm |
| Packing dimensions | 120 x 20 x 29 cm |
| Total weight | 23 Kg |
* Max. external diameter including cable and cable cover
| 4HS 08/03 MP | |
| Voltage | 90-400 VDC 90-265 VAC |
| Max current | 16 A (113 VDC) 16 A (113 VAC) |
| Power factor | 1 |
| Max power P1 | 1800 W |
| Length | 858 mm |
| Discharge | 1 1/2” 2” |
| Pump weight | 19,4 Kg |
| Max diameter* | 99 mm |
| Packing dimensions | 120 x 20 x 29 cm |
| Total weight | 20 Kg |
* Max. external diameter including cable and cable cover
| 4HS 08/05 MP | |
| Voltage | 90-400 VDC 90-265 VAC |
| Max current | 16 A (187 VDC) 16 A (187 VAC) |
| Power factor | 1 |
| Max power P1 | 3000 W |
| Length | 950 mm |
| Discharge | 1 1/2” 2” |
| Pump weight | 21 Kg |
| Max diameter* | 99 mm |
| Packing dimensions | 120 x 20 x 29 cm |
| Total weight | 22 Kg |
* Max. external diameter including cable and cable cover
General specifications
| 4HS MultiPower | |
| Max liquid temperature | 35 °C (92 °F) |
| Min liquid cooling speed | 0.2 m/s |
| Characteristics of the pumped liquid | clean, chemically not aggressive, not explosive, without solid and fibre content, with max. 50 g/m3 sand content |
| Protection grade | IP68 |
| Maximum immersion depth | 150 m |
| Materials | Motor and pump in AISI 304 stainless steel |
| Cable | Flat cable ACS – WRAS – KTM approved |
| CM MultiPower Control Module | |
| Max ambient temperature | 50 °C (122 °F) |
| Protection grade | IP55 |
| Materials | Aluminium enclosure, PVC labels , cable gland in polyamide (PA), display membrane in polyester (PE) |
| Analog input | 2 input 4-20 mA + 2 input 4-20 mA or 0-10 V settable by the user |
| Digital input | 4 input N.A or N.C settable by the user |
| Digital output | 2 relays output 5 A , 250 VAC, N.O. or N.C settable by the user |
| User display | display LCD backlit, 16 characters x 2 rows, 5 buttons |
| Short-circuit protection | fuse |
| Certifications | |
| CE |
Materials

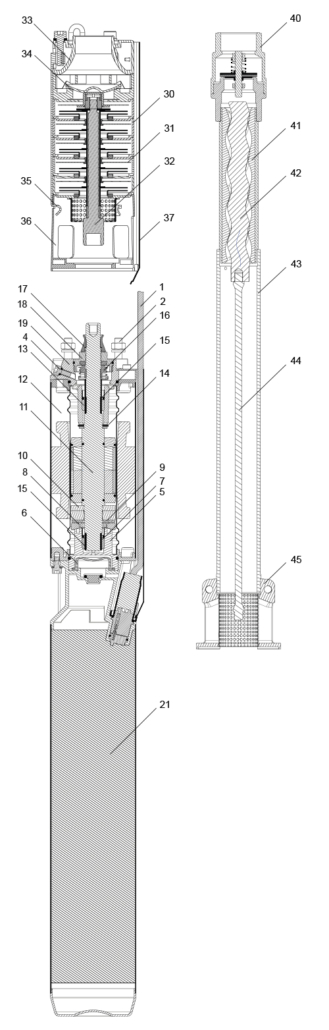

| RIF | Description | Material |
| 1 | Power supply cable with removable connector for drinking water applications | AISI 304 + ACS-KTM-WRAS compliant |
| 3 | MINT: Electronic Integrated Module | |
| 4 | Cable guard | AISI 304 |
| 5 | Lower thrust bearing | AISI 304 |
| 6 | Rubber diaphragm | EPDM |
| 7 | Lower bush | SiC |
| 8 | Tilting disc | AISI 304 |
| 9 | Pads | AISI420j |
| 10 | Carbon disc | CTI25 |
| 11 | Shaft with rotor | AISI 431 |
| 12 | Canned type stator | AISI 304 |
| 13 | Upper bush | SiC |
| 14 | Upper thrust bearing | Teflon |
| 15 | Ceramized sleeve | AISI 304 + Ceramica |
| 16 | Mechanical seal | SiC |
| 17 | Rotating sandguard | NBR |
| 18 | Pump filter | AISI 304 |
| 19 | Pump bracket | AISI 304 |
| Centrifugal pump | ||
| 20 | Diffusers | AISI 304 |
| 21 | Impellers | AISI 304 |
| 22 | Pump shaft | AISI 304 |
| 23 | Discharge | AISI 304 |
| 24 | Straps | AISI 304 |
| Helicoidal rotor pump | ||
| 25 | No-return valve | AISI 304 |
| 26 | Helicoidal stator | EPDM + AISI 304 |
| 27 | Supporting pipe | AISI 304 |
| 28 | Junction | AISI 304 |
| 29 | Helicoidal rotor | AISI 304 cromato |
| 30 | Safety hook | AISI 304 |
| 31 | Flexible shaft | AISI 316 |
| 32 | Pump adaptor | AISI 304 |
