MIDA Solar – Technical Specifications
| Model | V in DC | V in AC * | Max V out | Max I in |
Max I out | P2 motor power ** | Size | Net weight | Packing dimensions | Total weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VDC | VAC | VAC | A | A | VAC | kW | kg | mm | kg | ||||||||
| MIDA Solar 203 | 90-400 | 90-265 | 250 | 11 |
|
|
|

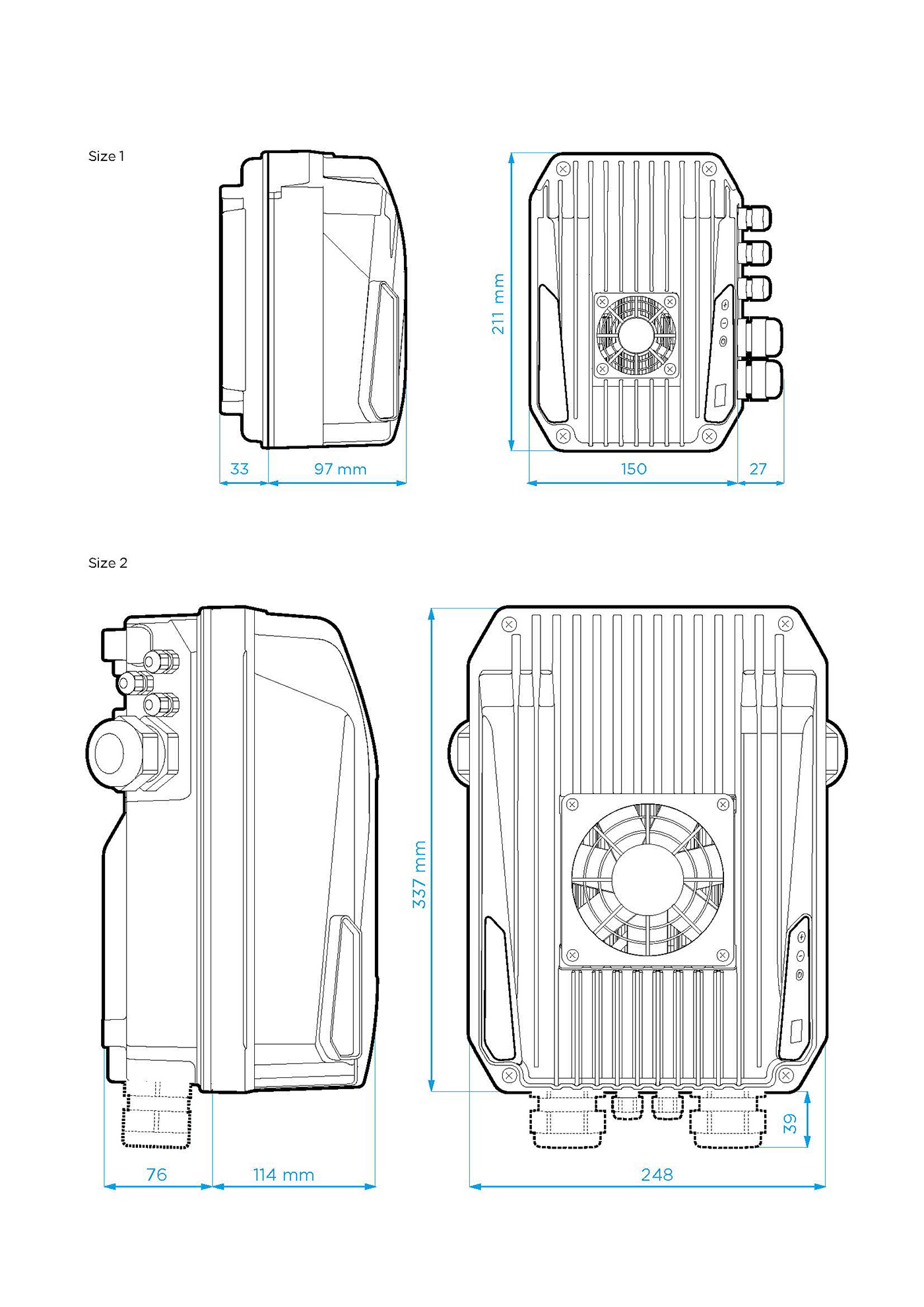

1 | 2,5 kg (5,5 lb) | 220x170x170 | 2,8 | ||||||
| MIDA Solar 205 | 90-400 | 90-265 | 250 | 11 |
|
|
|
1 | 2,5 kg (5,5 lb) | 220x170x170 | 2,8 | ||||||
| MIDA Solar 207 | 90-400 | 90-265 | 250 | 11 |
|
|
|
1 | 2,5 kg (5,5 lb) | 220x170x170 | 2,8 | ||||||
| MIDA Solar 209 | 90-400 | 90-265 | 250 | 14,5 |
|
|
|
2 | 10 kg (22 lb) | 400x270x300 | 10,3 | ||||||
| MIDA Solar 212 | 90-400 | 90-265 | 250 | 19,5 |
|
|
|
2 | 10 kg (22 lb) | 400x270x300 | 10,3 | ||||||
| MIDA Solar 218 | 90-400 | 90-265 | 250 | 32 |
|
|
|
2 | 10 kg (22 lb) | 400x270x300 | 10,3 |
* AC power available only for MIDA Solar MP models.
** Typical motor power. It is recommended to refer to rated motor current when selecting the MIDA Solar model.
General specifications
| Rated frequency | 50 – 60 Hz (+/- 2%) |
|---|---|
| EMC Compliance | EN61800-3 C2 (C1 for MIDA Solar 203, 205, 207) |
| Energy Efficiency Class (EN61800-9-2) | IE2 |
| Relative humidity in the working environment | 5 – 95% non-condensing |
| Ambient temperature | -10 °C (14 °F) – 60 °C (140 °F) |
| Maximum working ambient temperature at full load | 50°C (122 °F) |
| Max. altitude at rated current | 1000 m |
| Vibration resistance | EN60068-2-6:2008 EN60068-2-27:2009 EN60068-2-64:2008 |
| Degree of protection | IP66 (NEMA 4X) |
| Settable digital outputs N.O. or N.C | 1. Motor run signal 2. Alarm signal |
| Analog inputs (10 or 15 VDC) | 1. 4-20 mA 2. 4-20 mA 3. 0 – 10 VDC 4. 0 – 10 VDC |
| Digital inputs | 4 digital inputs, configurable N.O. or N.C. for motor run/stop. |
| Communication | MODBUS RTU RS485, Bluetooth® SMART (4.0) |
